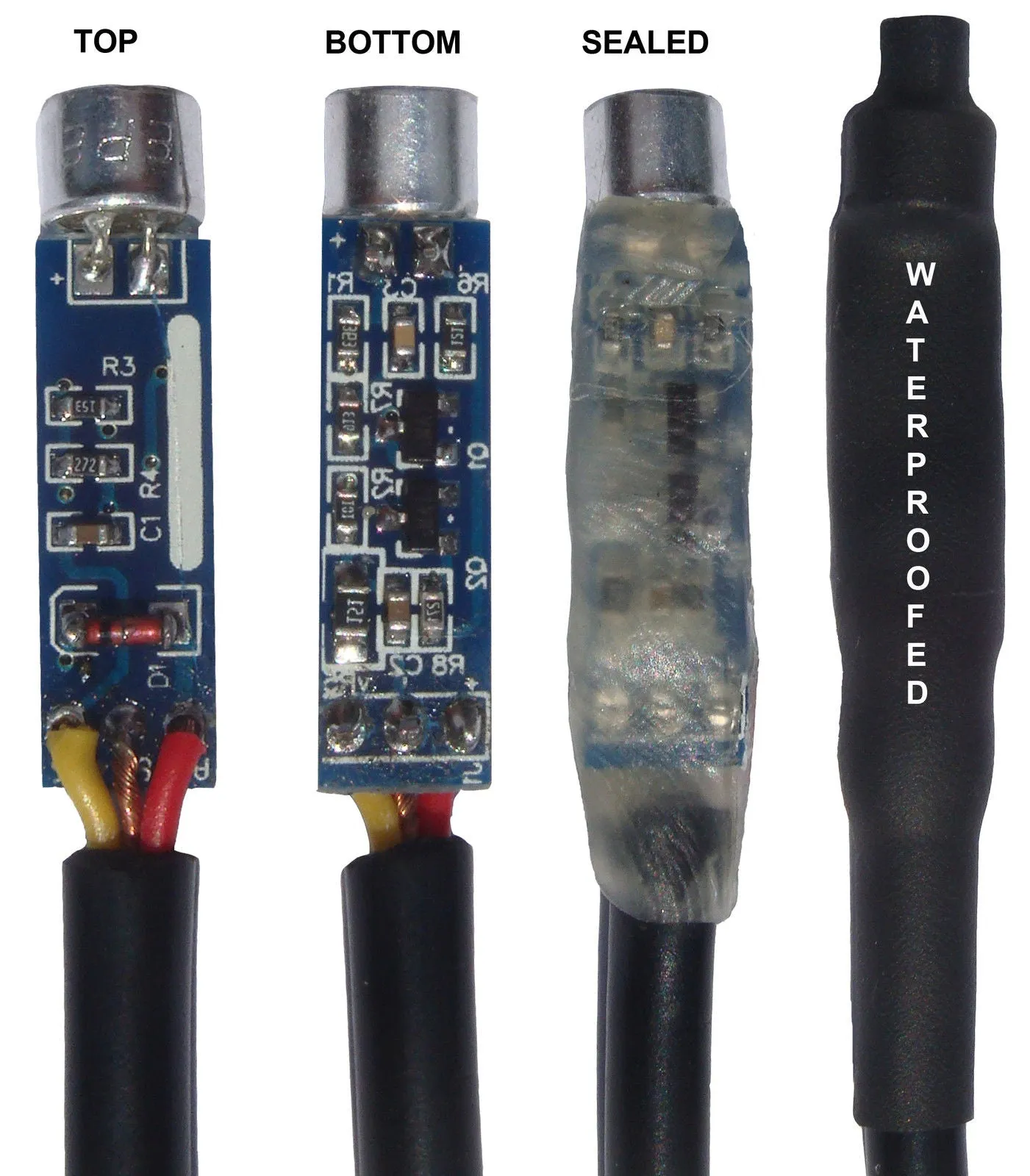

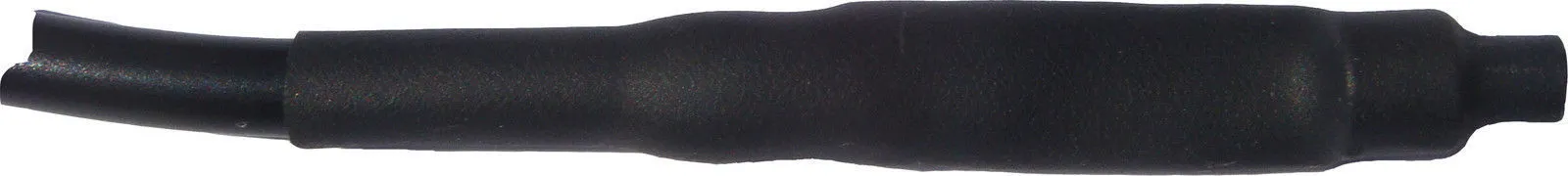

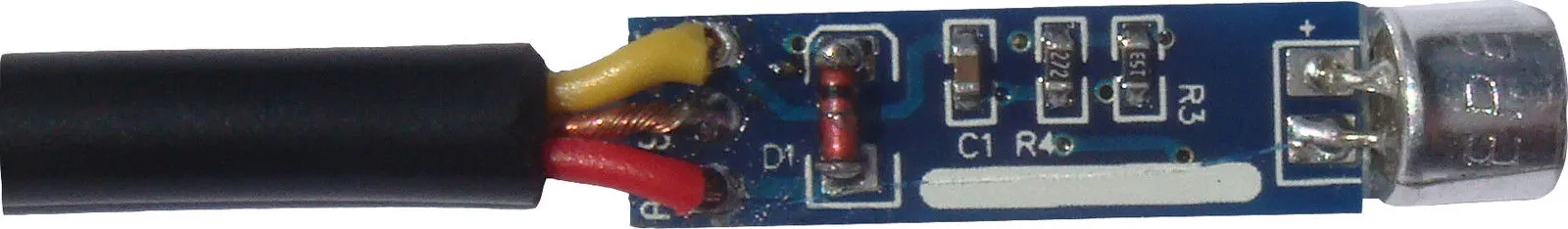

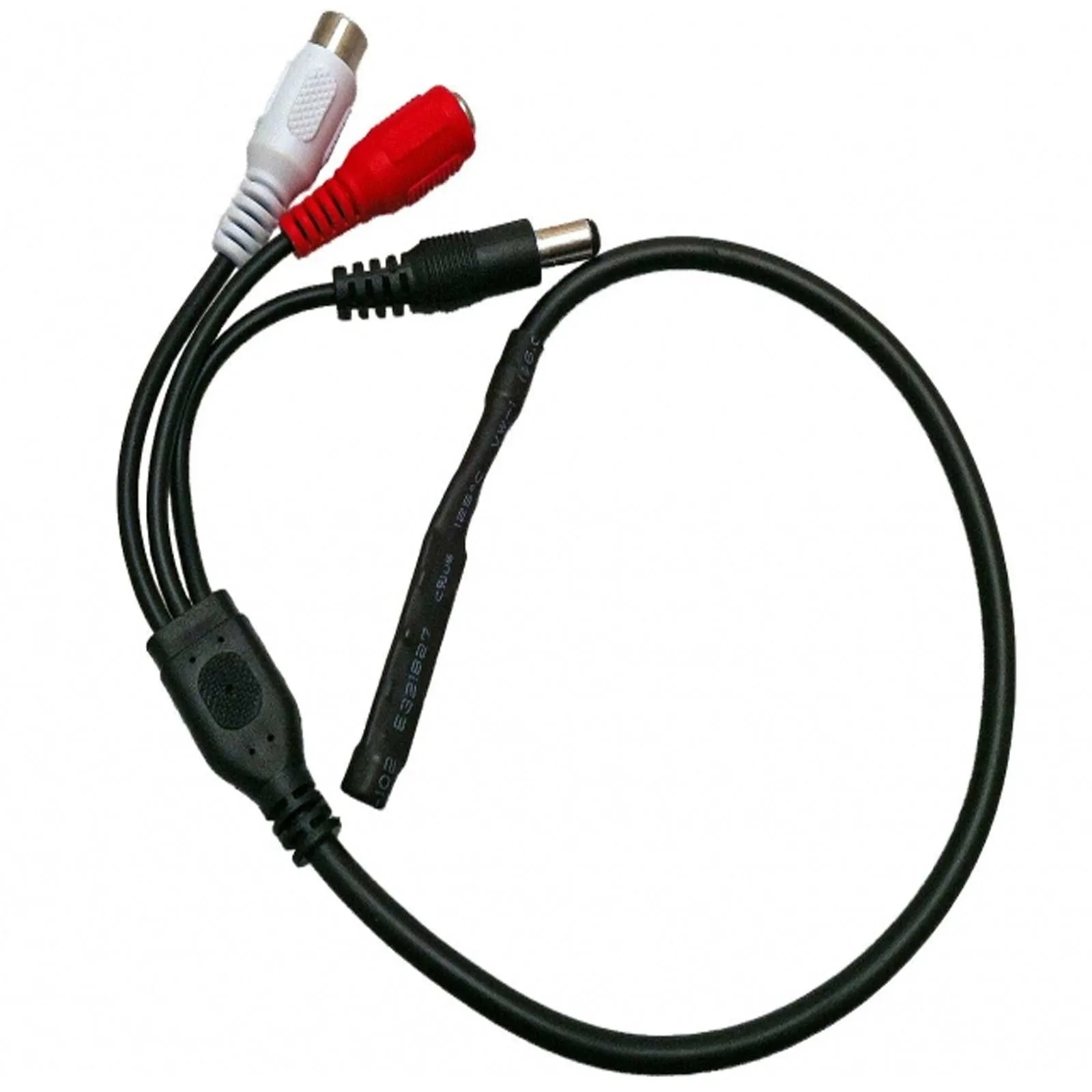

This outdoor waterproof CCTV audio microphone from Micronic has a very sensitive microphone capsule and inline 2 stage pre-amp circuit. The microphone has a patented waterproof cover to protect it from moisture damage. The pre-amp circuit is attached to microphone and measures 8mm in diameter and 30mm in length. The whole thing is completely sealed and permanently attached to microphone and cable. A unique design to protect microphone from water and frost extends to extend its operational life. Also supplied with furry windshield to drastically reduce wind noise when exposed to open air.

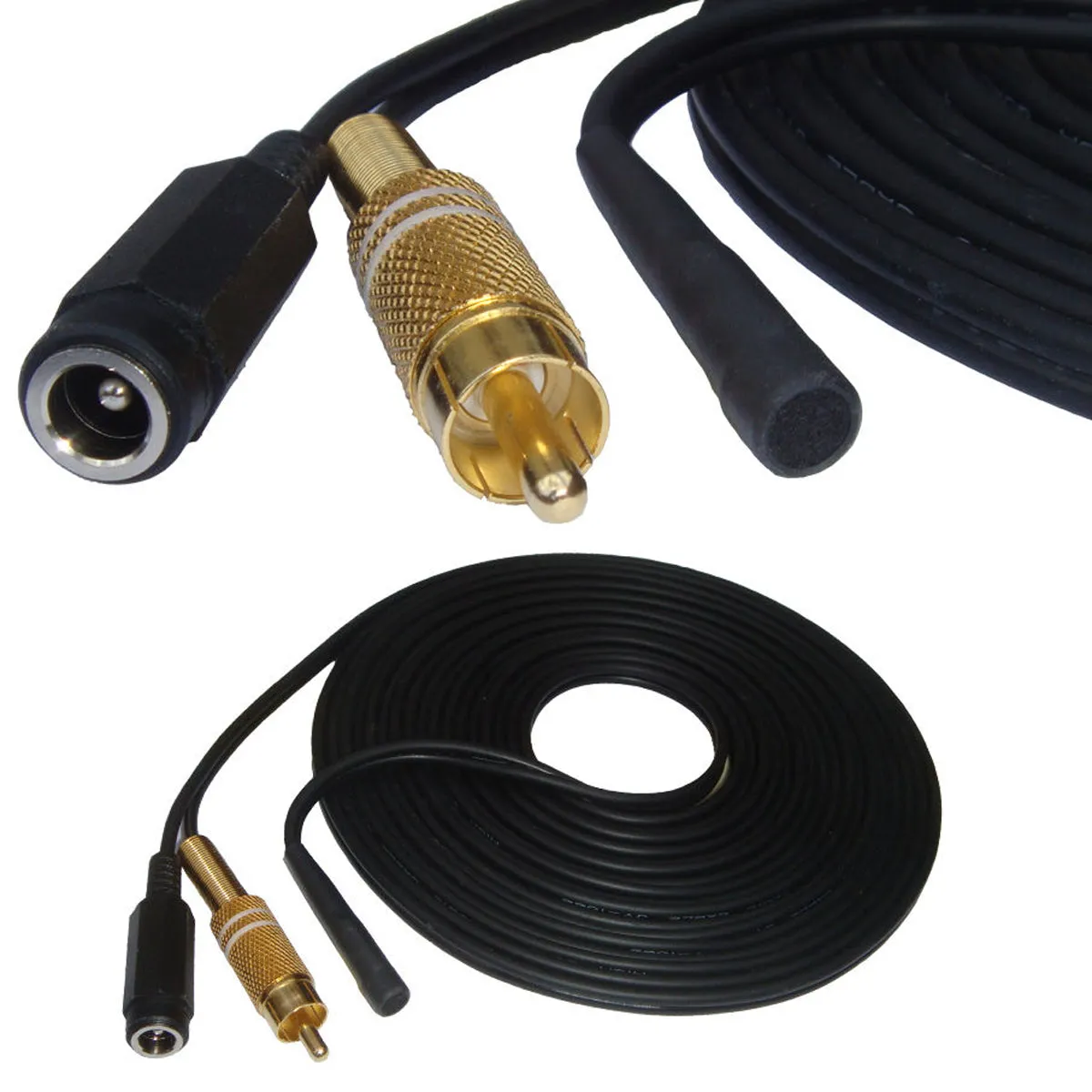

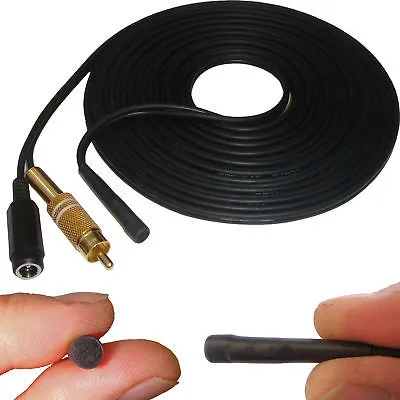

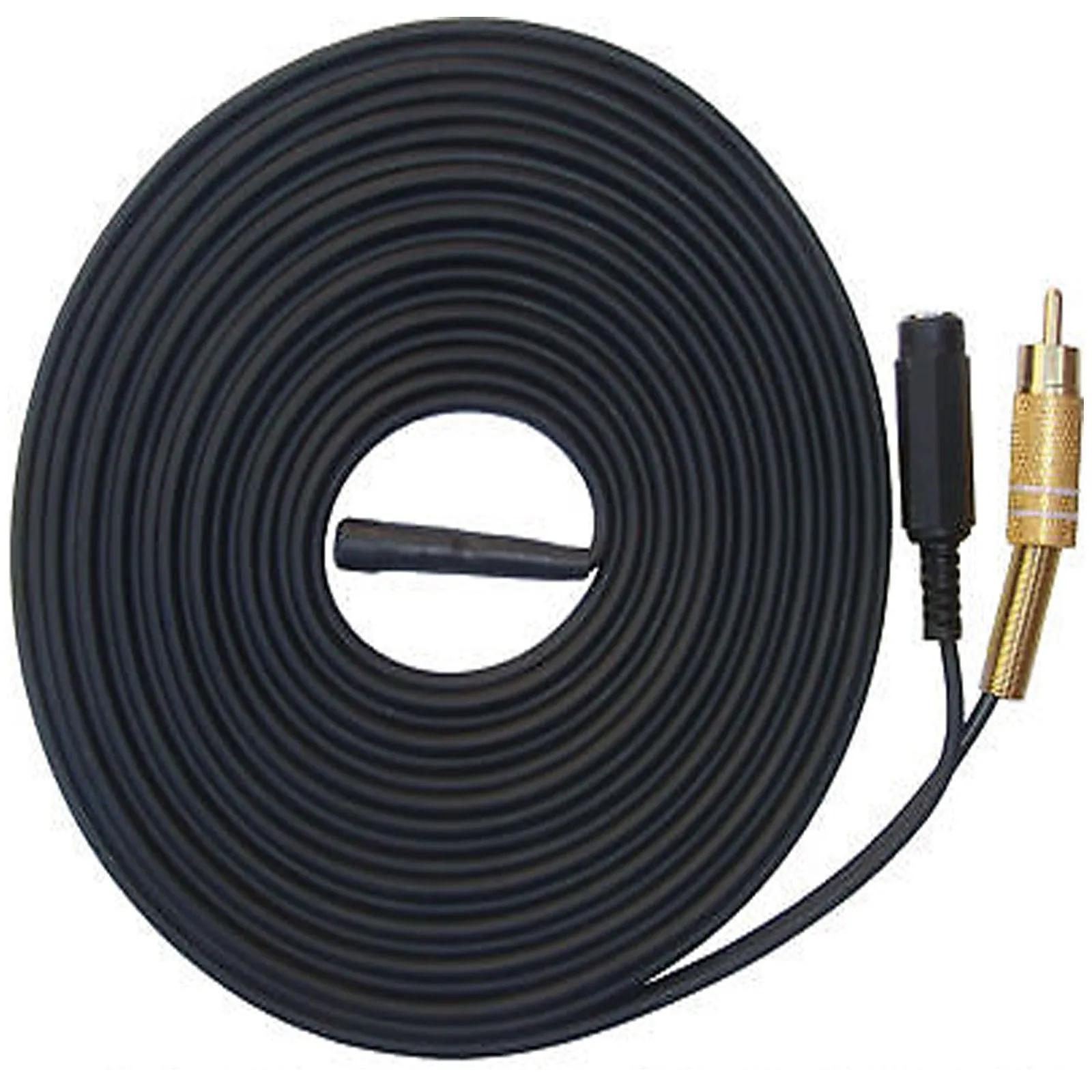

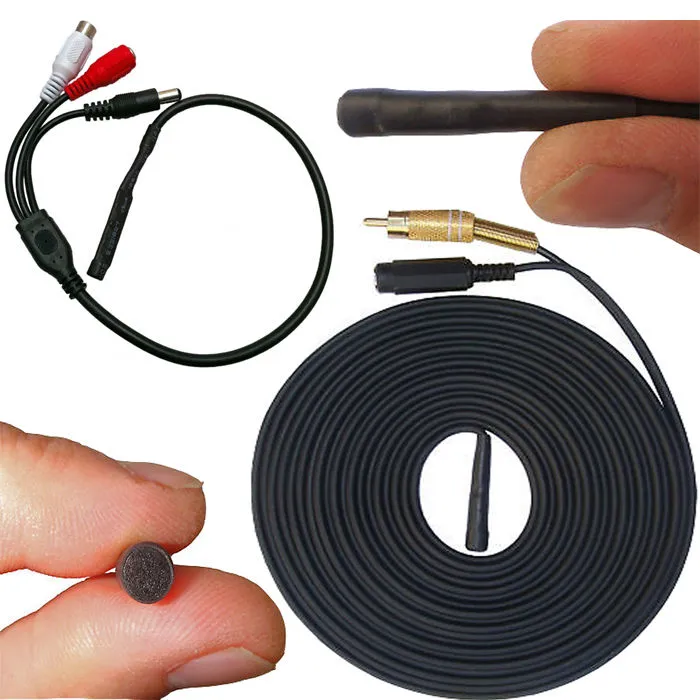

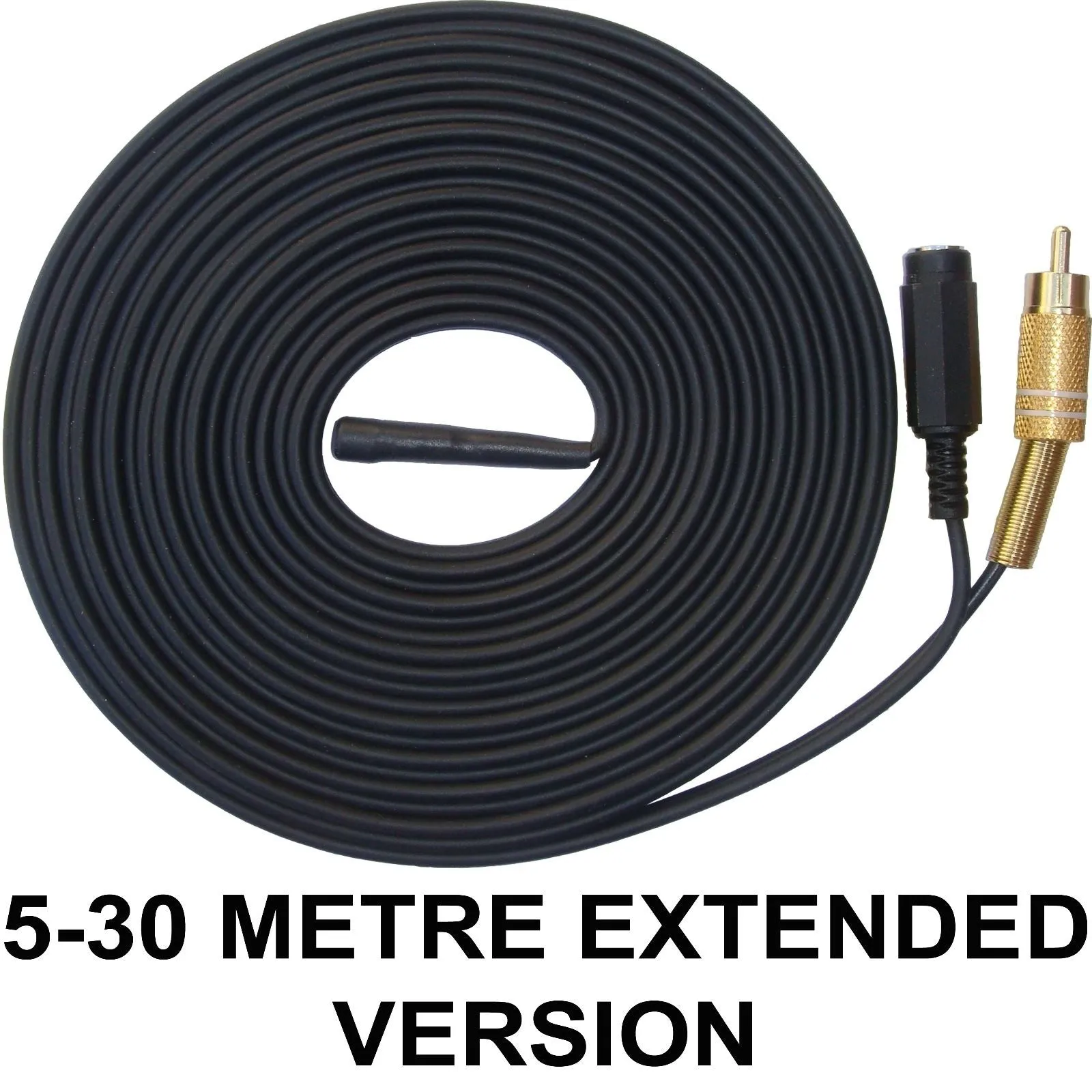

Perfect for installing outdoors alongside CCTV cameras / security / surveillance / audio systems. Microphone cable length's start from 30cm to 300 metre's. All made with high quality twinned copper screened audio / power cable. Longer cable up to 100 metre's can be made to order
Please use the CABLE LENGTH drop down menu above to choose your required length.
- Built-in Imported chips, high sensitivity, clear voice.
- Integrated amplifier connects directly to active speaker, DVR, recorder, IP camera.
- Electronic noise dynamic closed loop suppression circuit eliminates all electronic noise, hiss and buzzing noise.
- Dolby noise reduction technology eliminate echo and distortion.
- Super sensitive microphone pick up speech 10-30 metres.
- Built in audio amplifier Automatic Gain Control (AGC) circuit.
- Water proofed and sealed with silicon and patented microphone
Specification
| Product Name | Micronic CCTV Microphone |
| Model | CCTV MIC |
| Monitoring range | 10-100㎡ (adjustable) |
| Working voltage | DC 6v-14v (12v is standard) |
| Supply current | 20mA |
| Transmission distance | up to 100 metres audio cable |
| Sensitivity | -35db |
| Signal Noise Ratio | 70db |
| Frequency response | 20hz to 20KHz |
| Directivity | Omni directional |
| Output signal amplitude | 2.5 Vpp /- 25 db |
| Maximum sound pressure | 120db SPL (1 KHz, THD 1%) |
